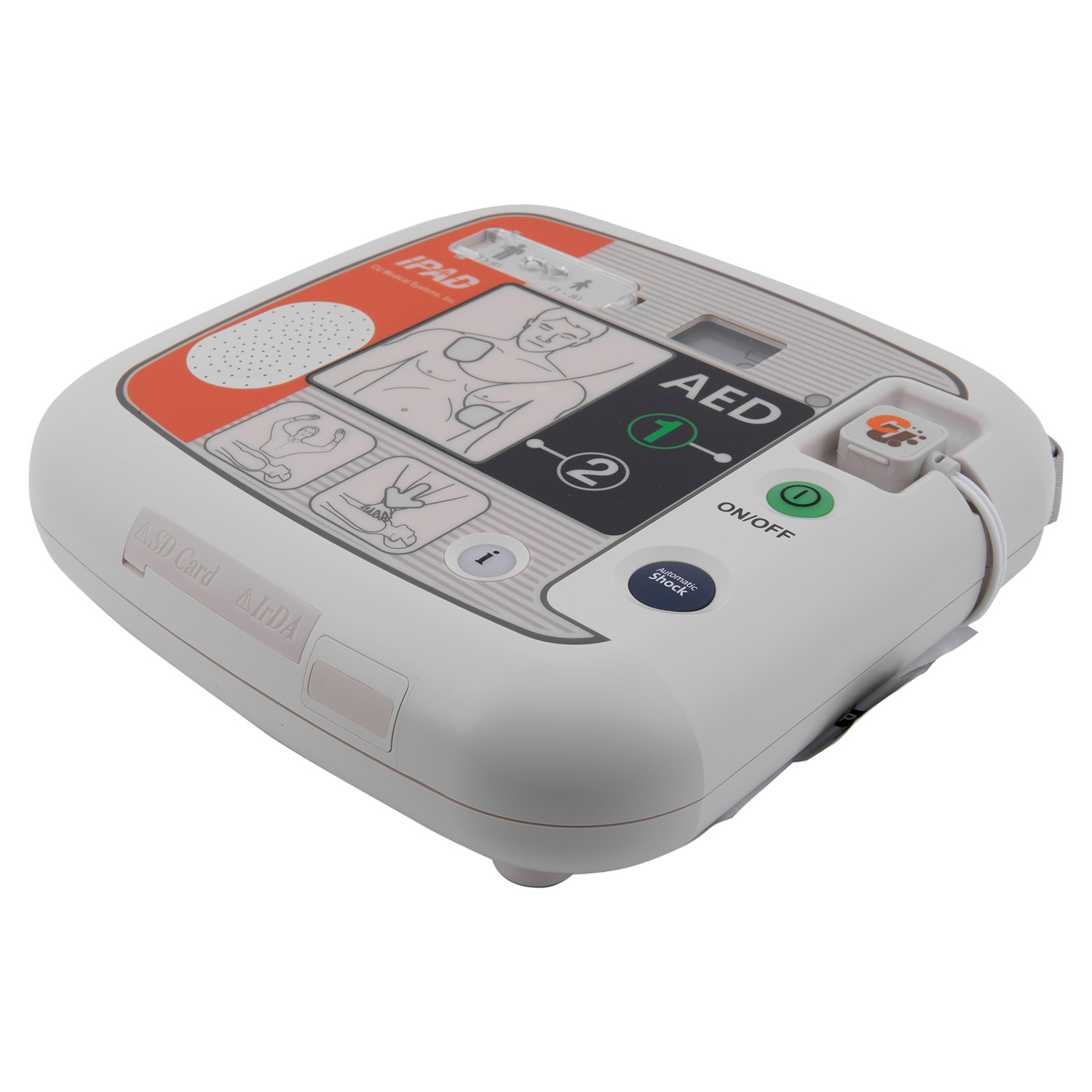

iPAD CU-SP1


Highly Popular and Reliable AED with Proven Quality and Performance



The iPAD CU-SP1 (AED / Defibrillator) has been developed with the end user in mind, making it as easy as possible to use. Its sleek and robust design, along with high-quality manufacturing, incorporates the latest in defibrillation technology to assist the user in saving precious seconds when every second counts.


The iPAD CU-SP1 (AED / Defibrillator) is available in both fully automatic and semi automatic versions. Both versions share the same specifications, with the only differences being the product labels and the presence of the shock button.


With its robust one piece design and high performance, the iPAD CU-SP1 (AED / Defibrillator) intelligently guides the user with calm voice prompts and large, clear illustrations which illuminate to highlight key commands. Instructions are given at every step and importantly, the voice prompts automatically adjust to background noise. This can be crucial when surrounding noise escalates and in challenging environments if sudden cardiac strikes. The ambient noise detector is also useful in busy training environments.


Should the need arise for a defibrillator to be used on a child, the iPAD CU-SP1 (AED / Defibrillator) is equipped with pre-connected dual electrode pads that can be used on both adults and children. By simply lifting a clear, safety cover on the front, the device can be switched immediately to pediatric mode. This saves valuable time and anxiety in an emergency.


With over a decade of trusted performance, the iPAD CU-SP1 (AED / Defibrillator) has built a solid reputation in the market, driven by its outstanding reliability and rugged durability.

iPAD CU-SP1


Highly Popular and Reliable AED with Proven Quality and Performance



The iPAD CU-SP1 (AED / Defibrillator) has been developed with the end user in mind, making it as easy as possible to use. Its sleek and robust design, along with high-quality manufacturing, incorporates the latest in defibrillation technology to assist the user in saving precious seconds when every second counts.


The iPAD CU-SP1 (AED / Defibrillator) is available in both fully automatic and semi automatic versions. Both versions share the same specifications, with the only differences being the product labels and the presence of the shock button.


With its robust one piece design and high performance, the iPAD CU-SP1 (AED / Defibrillator) intelligently guides the user with calm voice prompts and large, clear illustrations which illuminate to highlight key commands.  Instructions are given at every step and importantly, the voice prompts automatically adjust to background noise. This can be crucial when surrounding noise escalates and in challenging environments if sudden cardiac strikes.  The ambient noise detector is also useful in busy training environments.


Should the need arise for a defibrillator to be used on a child, the iPAD CU-SP1 (AED / Defibrillator) is equipped with pre-connected dual electrode pads that can be used on both adults and children. By simply lifting a clear, safety cover on the front, the device can be switched immediately to pediatric mode. This saves valuable time and anxiety in an emergency.


With over a decade of trusted performance, the iPAD CU-SP1 (AED / Defibrillator) has built a solid reputation in the market, driven by its outstanding reliability and rugged durability.

홈  ·  Products  ·  AED  ·   iPAD CU-SP1

What would you like?

It's up to you.

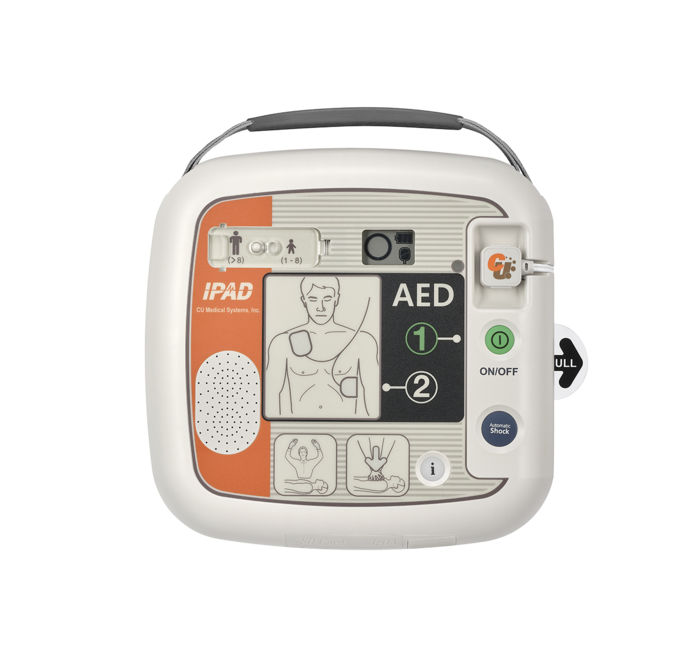

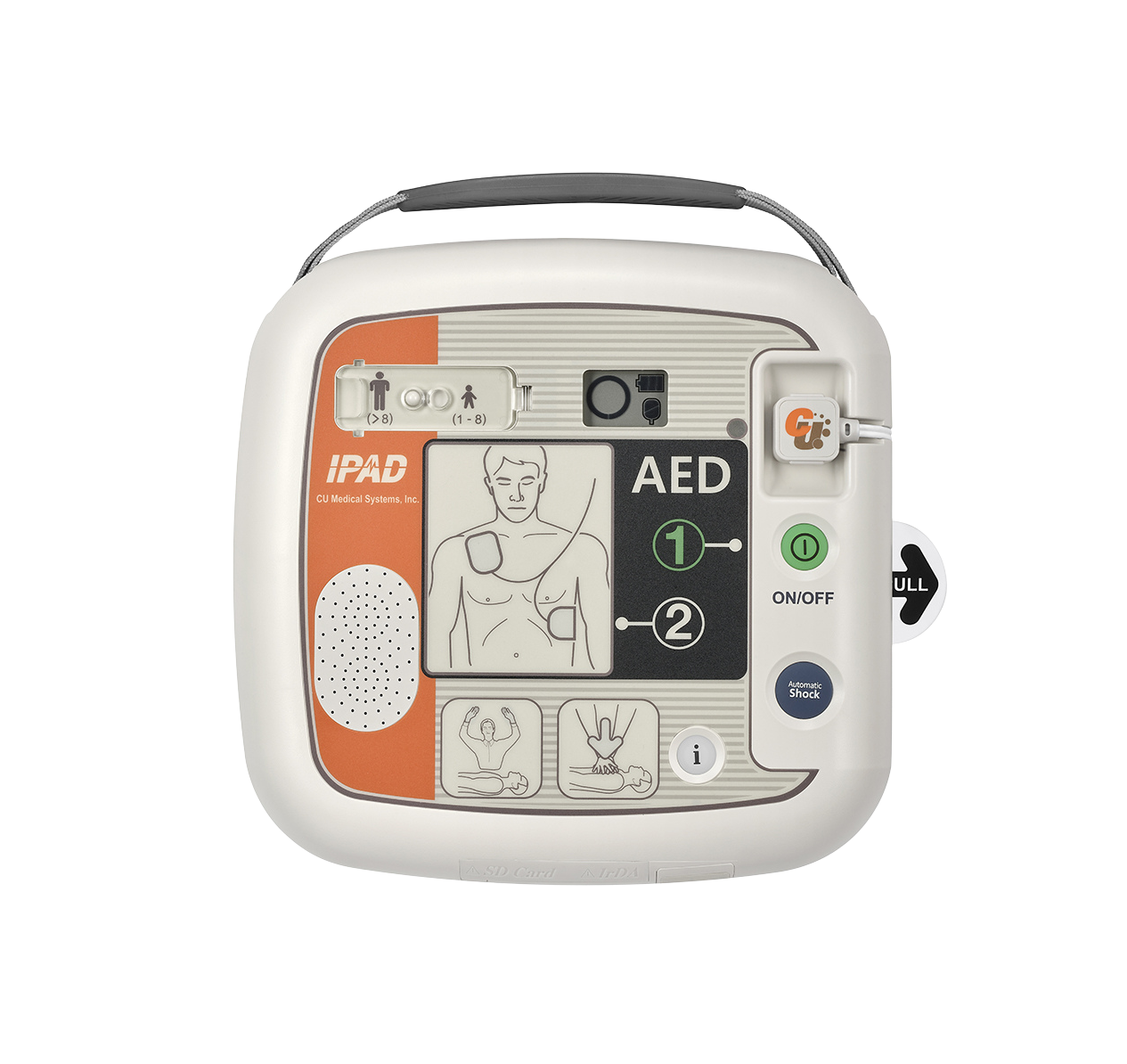

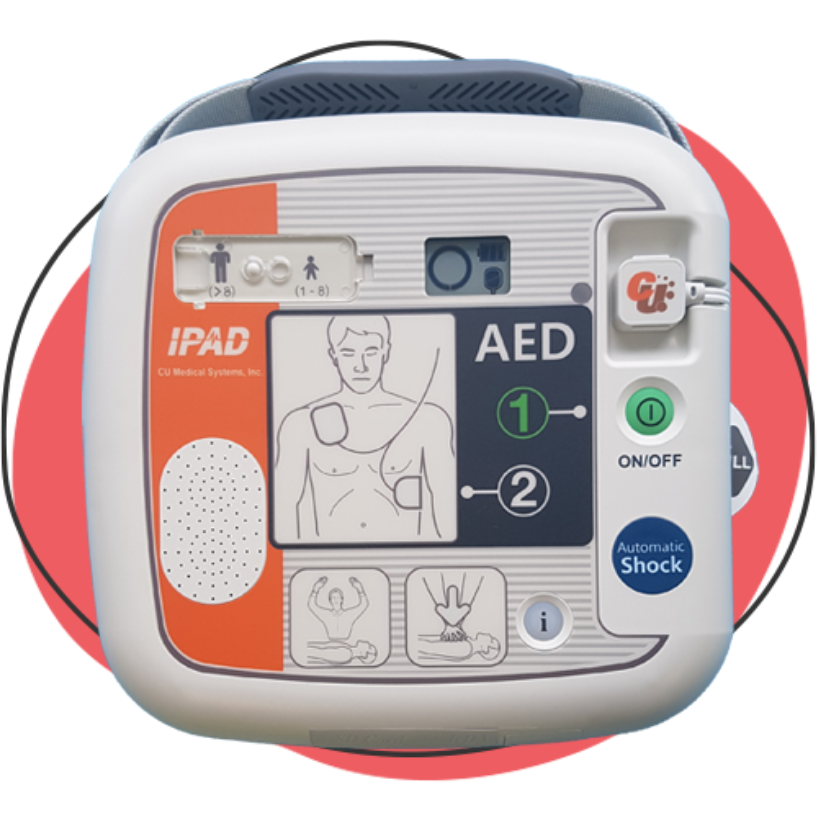

Fully Automatic?

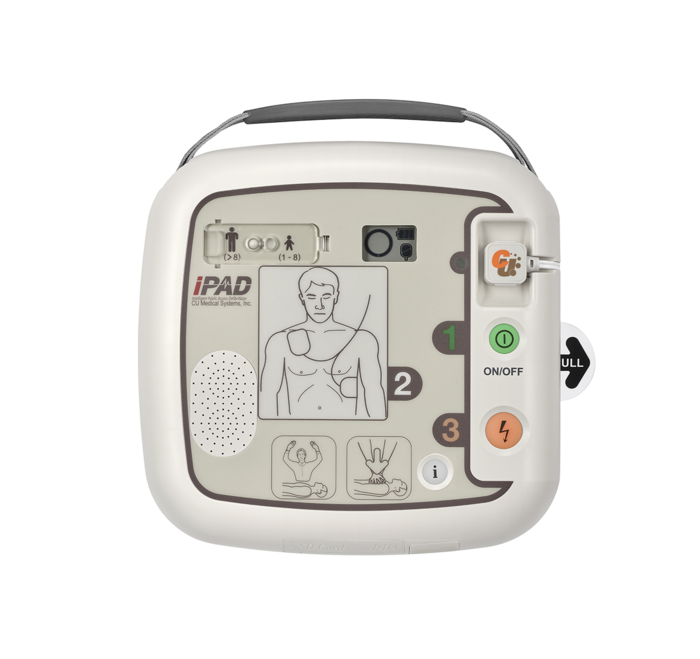

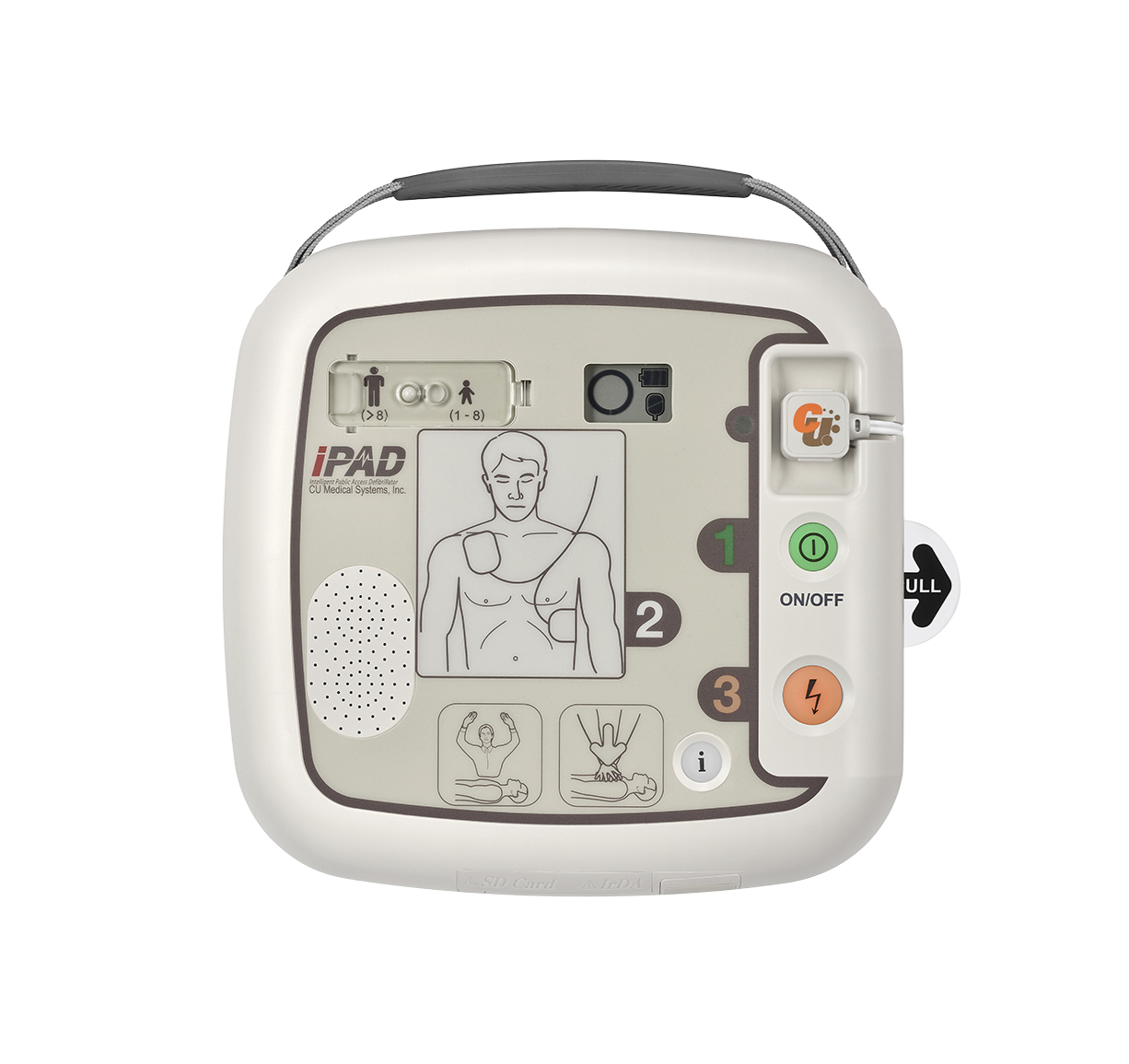

Semi Automatic?

Highlight Features

  • PROVEN RELIABILITY BACKED BY OVER A DECADE OF EXCELLENCE

     With more than 10 years of trusted use in the field, the iPAD CU-SP1 (AED/Defibrillator) has earned a strong reputation worldwide. Its exceptional reliability and rugged durability make it a preferred choice for emergency responders, public facilities, and organizations that demand consistent performance in life-saving situations.

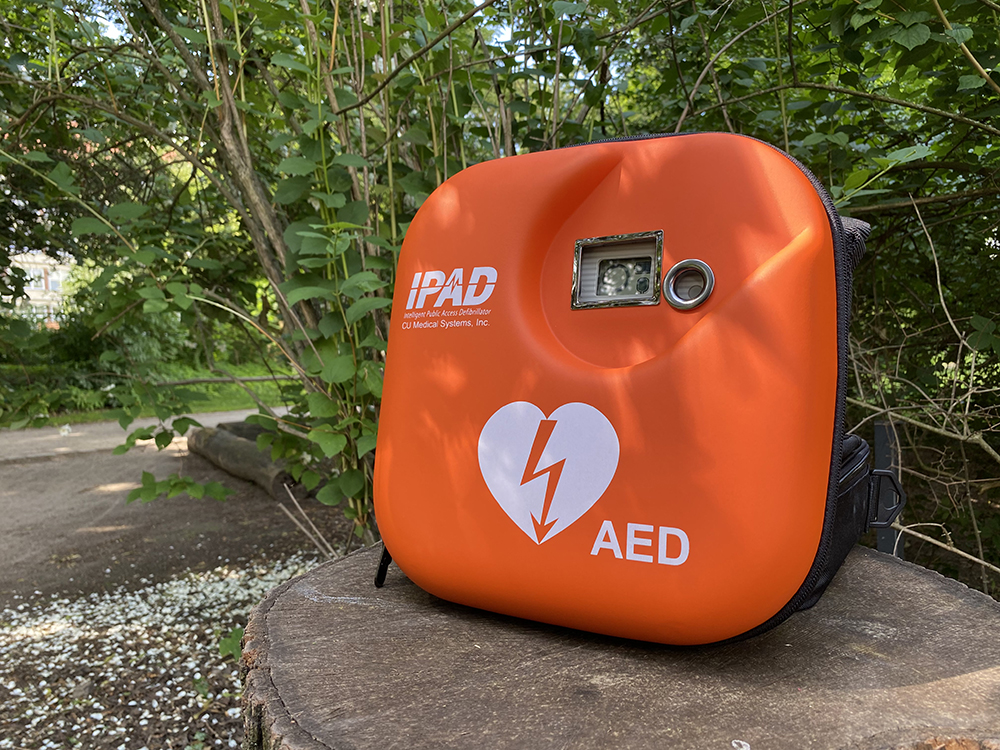

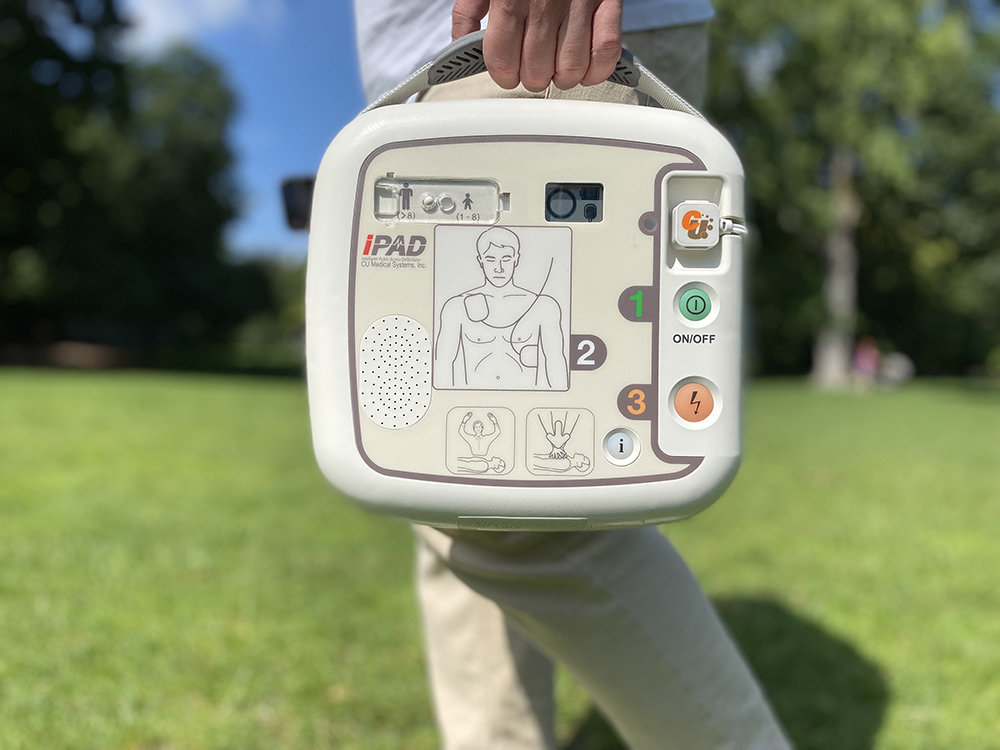

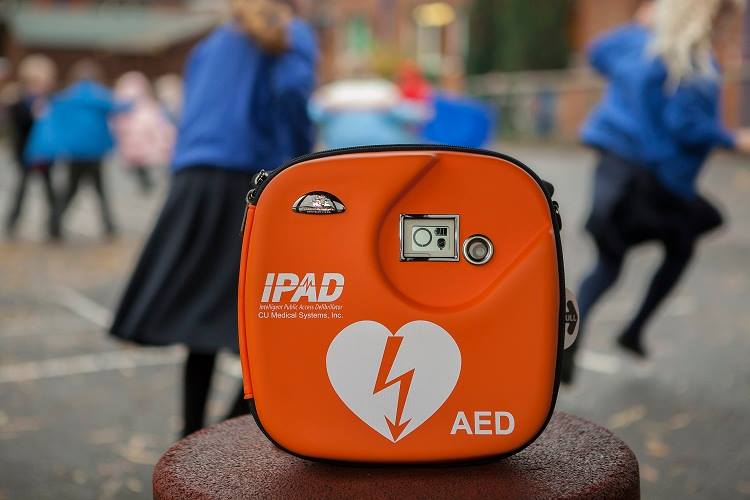

  • ROBUST ONE PIECE DESIGN WITH EYE-CATCHING BAG

     The iPAD CU-SP1 is built with a robust one-piece design, providing outstanding strength and long-lasting durability even in demanding environments. Whether in public places, workplaces, or outdoor settings, its solid construcion protects the device from impacts and harsh conditions. Paried with a durable and stylish carrying bag, the iPAD CU-SP1 is not only easy to transport but also highly visible anytime, anywhere - ensuing it stands out when every secound counts.
  • CLEAR AND USER FRIENDLY TO OPERATE AND MAINTAIN

     Step-by-step guidance with bright visual illustrations, soothing voice prompts, and large, user-friendly button
  • EASY-TO-MANAGE MAINTENANCE VIA LCD DISPLAY

     With the LCD display, users can easily check the device’s current status, battery level, and pads expiration date at a glance.
  • AUTOMATIC ADJUSTMENT TO BACKGROUND NOISE

     The iPAD CU-SP1 automatically adjusts its voice prompt volume based on the surrounding noise level, ensuring clear guidance in any environment. The voice prompts can reach up to 90 decibels, making them easy to hear even in loud, chaotic situations.
  • CPR DETECTION & METRONOME

     If CPR is not being performed, voice prompts encourage the responder to 'perform CPR‘. If CPR is being performed, voice prompts encourage the responder to 'continue CPR'. With the metronome, users can perform CPR effortlessly and in proper rhythm.
  • SIMPLE SWITCH SELECTION FROM ADULT TO CHILD MODE

     The iPAD CU-SP1 makes switching between Adult Mode and Child Mode simple and intuitive. Instead of pressing a button, users can easily slide the mode switch left or right to select the appropriate setting for the patient. This clear, manual switch ensures quick and accurate mode selection, helping responders take the right action without confusion during an emergency.
  • UNIVERSAL ELECTRODE PADS FOR ADULTS AND CHILDREN

     The iPAD CU-SP1 uses a single set of electrode pads that works for both adults and children. There’s no need to swap pads during an emergency.
  • Nominated as the defibrillator of choice by the British Heart Foundation (BHF)

     The iPAD CU-SP1 (AED / Defibrillator) is a nominated device of the British Heart Foundation (BHF). It is a widely used automated external defibrillator (AED) and is recognized by the BHF as a reliable device for public access and emergency situations. The British Heart Foundation and The Football Association selected the iPAD CU-SP1 as the AED unit of choice for promotion in their campaign to install defibrillators at all grassroots football clubs throughout England.

Product Gallery

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

Trusted Worldwide

See How Our AEDs Save

 Lives in Real Emergencie

Watch the video

to learn more.

See why we're trusted around the world.

More

See configuration and

specs at a glance.

홈  ·  Products  ·  AED  ·  iPAD CU-SP1

What would you like?

It’s up to you.

Fully Automatic?
Semi Automatic?

Highlight Features

  • PROVEN RELIABILITY BACKED BY OVER A DECADE OF EXCELLENCE


    With more than 10 years of trusted use in the field, the iPAD CU-SP1 (AED/Defibrillator) has earned a strong reputation worldwide. Its exceptional reliability and rugged durability make it a preferred choice for emergency responders, public facilities, and organizations that demand consistent performance in life-saving situations.

  • ROBUST ONE PIECE DESIGN WITH EYE-CATCHING BAG


    The iPAD CU-SP1 is built with a robust one-piece design, providing outstanding strength and long-lasting durability even in demanding environments. Whether in public places, workplaces, or outdoor settings, its solid construcion protects the device from impacts and harsh conditions. Paried with a durable and stylish carrying bag, the iPAD CU-SP1 is not only easy to transport but also highly visible anytime, anywhere - ensuing it stands out when every secound counts.

  • CLEAR AND USER FRIENDLY TO OPERATE AND MAINTAIN


    Step-by-step guidance with bright visual illustrations, soothing voice prompts, and large, user-friendly buttons

  • EASY-TO-MANAGE MAINTENANCE VIA LCD DISPLAY


    With the LCD display, users can easily check the device’s current status, battery level, and pads expiration date at a glance.

  • AUTOMATIC ADJUSTMENT TO BACKGROUND NOISE


    The iPAD CU-SP1 automatically adjusts its voice prompt volume based on the surrounding noise level, ensuring clear guidance in any environment. The voice prompts can reach up to 90 decibels, making them easy to hear even in loud, chaotic situations.

  • CPR DETECTION & METRONOME


    If CPR is not being performed, voice prompts encourage the responder to 'perform CPR‘. If CPR is being performed, voice prompts encourage the responder to 'continue CPR'. With the metronome, users can perform CPR effortlessly and in proper rhythm.

  • SIMPLE SWITCH SELECTION FROM ADULT TO CHILD MODE


    The iPAD CU-SP1 makes switching between Adult Mode and Child Mode simple and intuitive. Instead of pressing a button, users can easily slide the mode switch left or right to select the appropriate setting for the patient.

    This clear, manual switch ensures quick and accurate mode selection, helping responders take the right action without confusion during an emergency.

  • UNIVERSAL ELECTRODE PADS FOR ADULTS AND CHILDREN


    The iPAD CU-SP1 uses a single set of electrode pads that works for both adults and children. There’s no need to swap pads during an emergency.

  • NOMINATED AS THE DEFIBRILLATOR OF CHOICE BY THE BRITISH HEART FOUNDATION (BHF)


    The iPAD CU-SP1 is a nominated device of the British Heart Foundation (BHF). It is a widely used automated external defibrillator (AED) and is recognized by the BHF as a reliable device for public access and emergency situations. The British Heart Foundation and The Football Association selected the iPAD CU-SP1 as the AED unit of choice for promotion in their campaign to install defibrillators at all grassroots football clubs throughout England.

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

iPAD_CU-SPR_product_press_img

mobile background

Trusted Worldwide

See How Our AEDs Saved Lives in Real Emergencie

Watch the video to learn more.

See why we're trusted around the world.

More
iPAD CU-SP1 Disposable Battery
iPAD CU-SP1 Disposable Battery

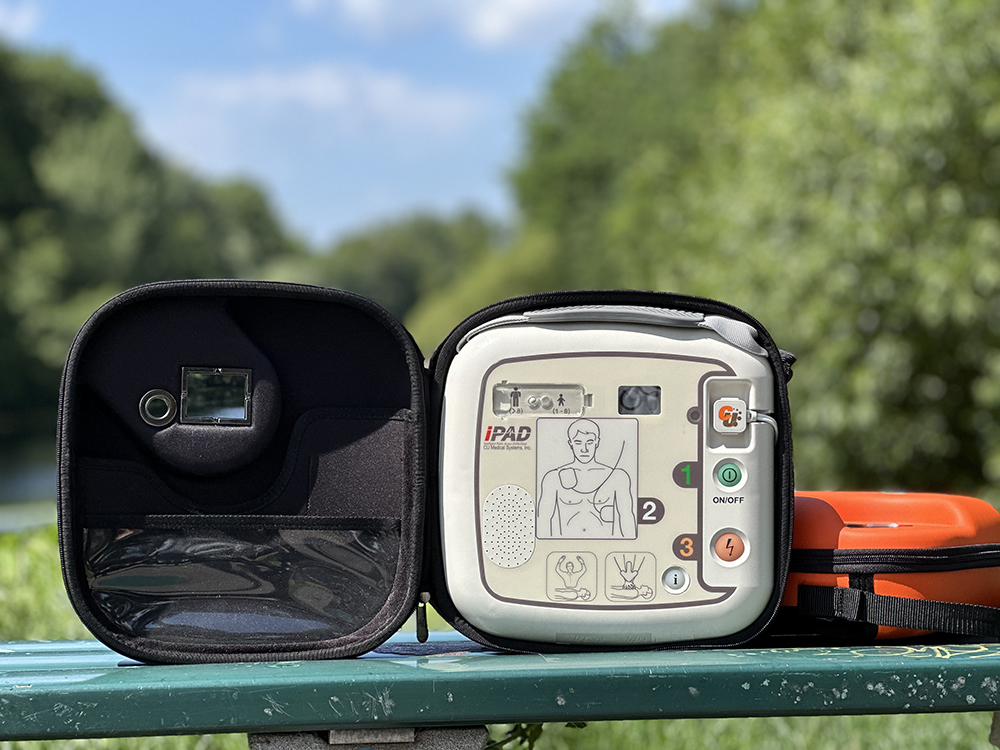

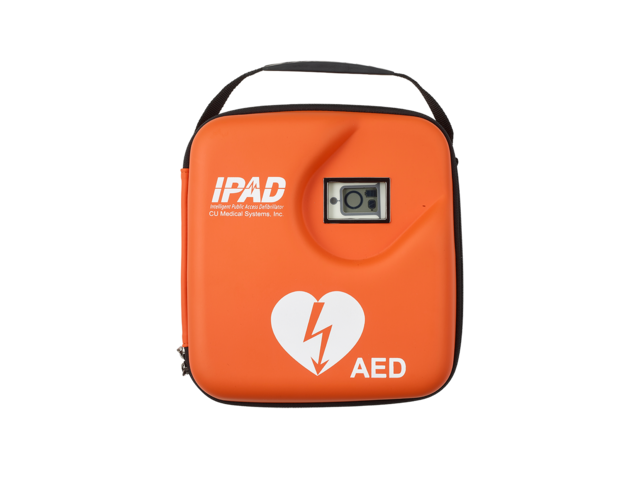

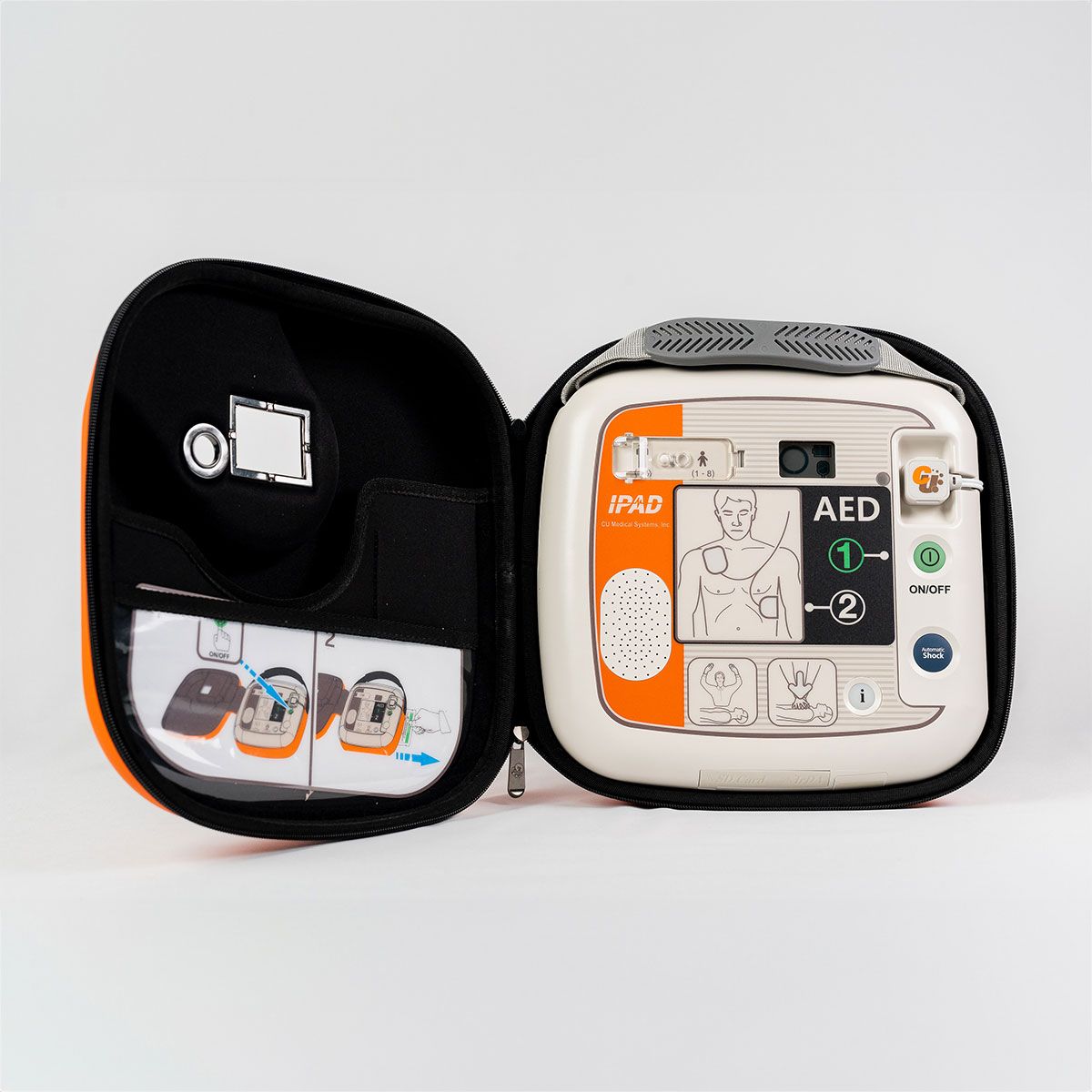

iPAD CU-SP1 Carry Case
iPAD CU-SP1 Carry Case
iPAD CU-SP1 Adult/Pediatric Pads
iPAD CU-SP1 Adult/Pediatric Pads

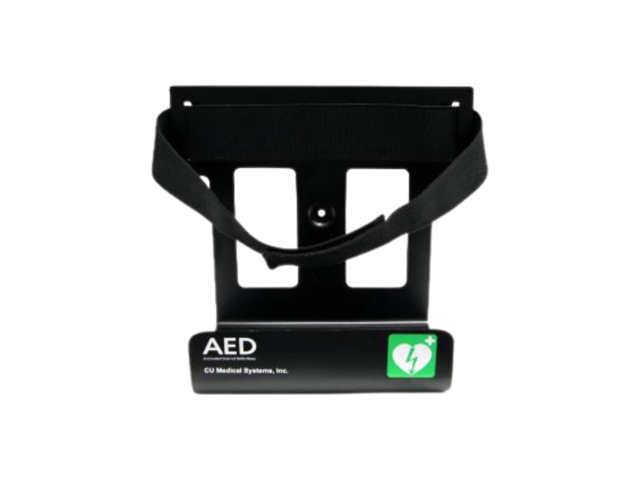

iPAD CU-SP1 Wall Bracket
iPAD CU-SP1 Wall Bracket

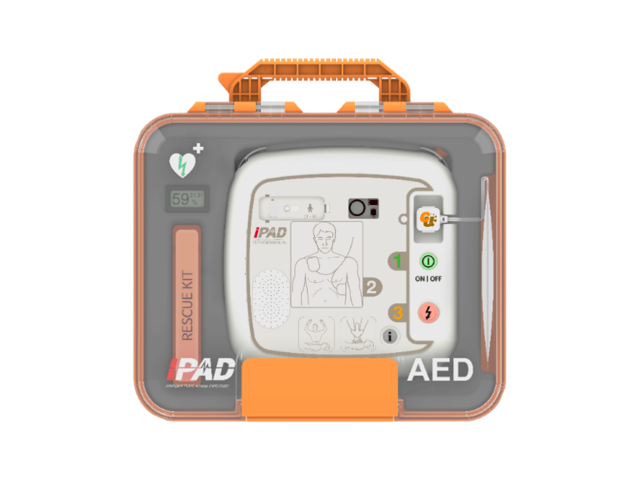

CoreTrek (Hard Case for iPAD AED)
CoreTrek (Hard Case for iPAD AED)

Technical Specifications

iPAD CU-SP1

Dimensions260㎜ x 256㎜ x 69.5㎜ (Width x Length x Height)
Weight2.4㎏ (Including the battery pack and pads)
Operational/Standby StatusThe device is stored together with the defibrillator pads and the battery pack is inserted - ready to be used in an emergency
Temperature0℃ ~ 50℃ (32℉ ~ 122℉)
Humidity
5% ~ 95% (non condensing)
Storage/Transport StatusTemperature
-20℃ ~ 60℃ (-4℉ ~ 140℉)
Humidity
5% ~ 95% (non condensing)
Altitude0 to 15,000 ft. (operation and storage)
Drop1.2 m drop to any edge, corner or surface
Vibration
  • Operating: Meets MIL-STD-810G Fig.514.6E-1
  • Standby: Meets MIL-STD-810G Fig.514.6E-2
SealingIEC 60529 : IP55
Operating ModeSemi-automated or Fully-automated
Waveforme-cube biphasic (Truncated exponential type)
Output Energy
  • 150 J / 200 J at 50 Ω load for adult (Semi-automated)
  • 150 J at 50 Ω load for adult (Fully-automated)
  • 50 J at 50 Ω load for pediatric (Semi and Fully-automated)
Charge ControlControlled by an automated patient analysis system
Charging TimeWithin 10 seconds
Time from CPR to ShockAt least 6 seconds from the completion of CPR to shock delivery
Disarm
  • Patient’s heart rhythm changes to non-shockable rhythm
  • The SHOCK button is not pressed within 15 seconds (Semi-automated)
Patient IsolationType BF, defibrillation protected
Acquired ECG LeadLead II
Frequency Response1 Hz to 30 Hz
Impedance Range25Ω to 175Ω
Sensitivity and SpecificityMeets ANSI/AAMI DF80 guidelines
Control DevicesPower Button, i-Button, Shock Button, Adult/Pediatric Selection Switch
Indicator
  • Do-Not-Touch-Patient Indicator
  • Pads Attach Position Indicators
  • Status Indicator
  • CPR Detection Indicator
  • Shock Button (Semi-automated)
  • i-Button
Speaker

Plays back voice instructions. The CU-SP1 analyzes the ambient noise level during a treatment operation. If ambient noise level is high, it automatically increases the voice instructions volume so that you can hear them clearly.

BeeperVarious beeping output
Battery LevelThe battery level is automatically performed during periodic self-tests, power ON self-test, and run-time self-test.
Low Battery IndicatorShown on the Status LCD, announced via voice instruction, and indicated via the flashing red i-Button
Voice promptGuides the user via voice prompt.
Auto
  • Power On Self-Test
  • Run-time Self-Test
  • Daily, Weekly, and Monthly Self-Test
ManualBattery Pack Insertion Test
IrDAFor PC communications
Internal Memory Data Capacity5 individual treatments, up to 3 hours per treatment
SD CardExternal memory. Data may be copied from the internal memory to the SD Card.
Electrode Area120㎠
Cable LengthTotal 120㎝ (Inside the pouch: 95㎝ , Outside the pouch: 25㎝)
Shelf lifeAt least 36 months from the date of manufacture
Temperature Ranges
  • Operating Temperature: 0℃~50℃ (32℉~122℉)
  • Storage Temperature: -20℃~60℃ (-4℉~140℉)
Electrode Area85㎠
Cable LengthTotal 120㎝ (Inside the pouch: 95㎝, Outside the pouch: 25㎝)
Shelf lifeAt least 30 months from the date of manufacture
Temperature Ranges
  • Operating Temperature: 0℃~50℃ (32℉~122℉)
  • Storage Temperature: -20℃~60℃ (-4℉~140℉)

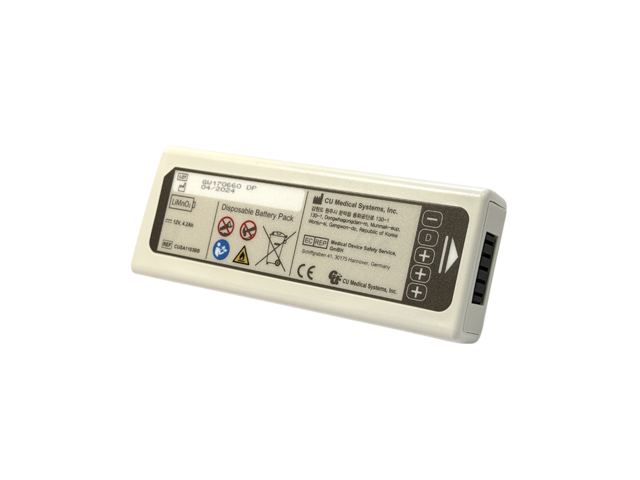

Battery Type12V DC, 4.2Ah LiMnO2, Disposable
CapacityAt least 200 shocks for a new battery or 8 hours of operating time at room temperature
Standby Life (After Inserting the Battery)At least 5 years from the date of manufacture if stored and maintained in accordance with the instructions in this document.
Temperature Ranges
  • 2Operating Temperature: 0℃ ~ 50℃ (32℉ ~ 122℉)
  • Storage Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)
