IPAD CU-SP1

Description
The IPAD CU-SP1 is a semi-automated external defibrillator (AED). If connected to a patient, the IPAD CU-SP1 automatically acquires and analyzes the electrocardiogram (ECG) of the patient for the presence of Ventricular Fibrillation or Ventricular Tachycardia (also known as shockable rhythms). If a shockable rhythm is detected, the device automatically charges itself. Defibrillating shock is delivered when you press the SHOCK button. The IPAD CU-SP1 is easy to use. It guides you throughout a rescue operation using voice prompts and indicators (LED and graphical indicators). The IPAD CU-SP1 is small, light, highly portable, and battery powered. It is highly suitable for use in public, out-of-hospital settings.

Functions and Features
Ambient noise detection [Auto volume adjusting]
Easy-to-use & manage Electrode (Displaying Life expectancy of Electrode)
CPR guide & Detection.

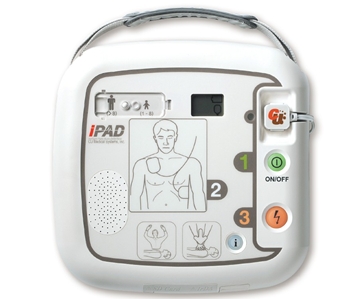

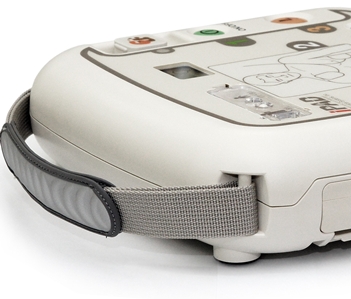

Product Exterior
Dimension: 260 x 256 x 70 mm (Width x Length x Height)
Weight: Appr. 2.4kg (Including battery pack and pads) .

Defibrillator
Operating Mode: Semi-automated, Full-automated
Waveform: e-cube biphasic (Truncated exponential type)
Output Energy: 150 J at 50 A load for Adults, 50 J at 50 A load for Children .

Self-Diagnostic Test
Auto
Power On Self-Test, Run-time Self-Test
Daily, Weekly, and Monthly Self-Test
Manual
Battery Pack Insertion Test (done when the user inserts the battery pack into the battery pack compartment of the device).

ECG Analysis System
Fucntion: Determines the impedance of the patient and evaluates the ECG of the patient to determine whether it is shockable or non-shockable
Impedance Range: 25Ω ~ 175Ω .

 Control Devices, Indicators, Voice Instructions
Control Devices Power Button, i-Button, Shock Button, Adult/Pediatric Selection Switch
Status LCD Displays device status, battery level and pads status
CPR Detection Indicator: Lights if CPR is detected; flashes if CPR is not detected..

Disposable Battery Pack
Battery Type: 12V DC, 4.2Ah LiMnO2, Disposable
Capacity: At least 200 shocks for a new battery or 8 hours of operating time at room temperature

Temperature
Operating: Temperature: 0℃ ~ 43℃ (32℃ ~ 109℃)
Storage: Temperature: -20℃ ~ 60℃ (-4℃ ~ 140℃)
.

Electrode
Adult
E
lectrode Area : 110cm2
Cable Length: Total 120cm
Pediatric
Electrode Area: 50cm2
Cable Length: Total 120cm.

Data Storage and Transfer
Internal Memory Data Capacity: 5 individual treatments, up to 3 hours per treatment
IrDA:  For PC communications
SD Card External memory: Data may be copied from the internal memory to the SD Card

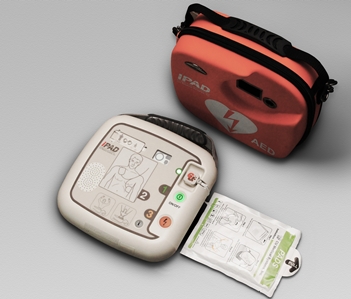

Standard Package
Device(1), Adult Pads(1), Disposable Battery(1), Carrying Case(1), User’s Manual(1).

Optional Accessories
Pediactric Pads(1), SD Card(1), CU-Expert software(1)
